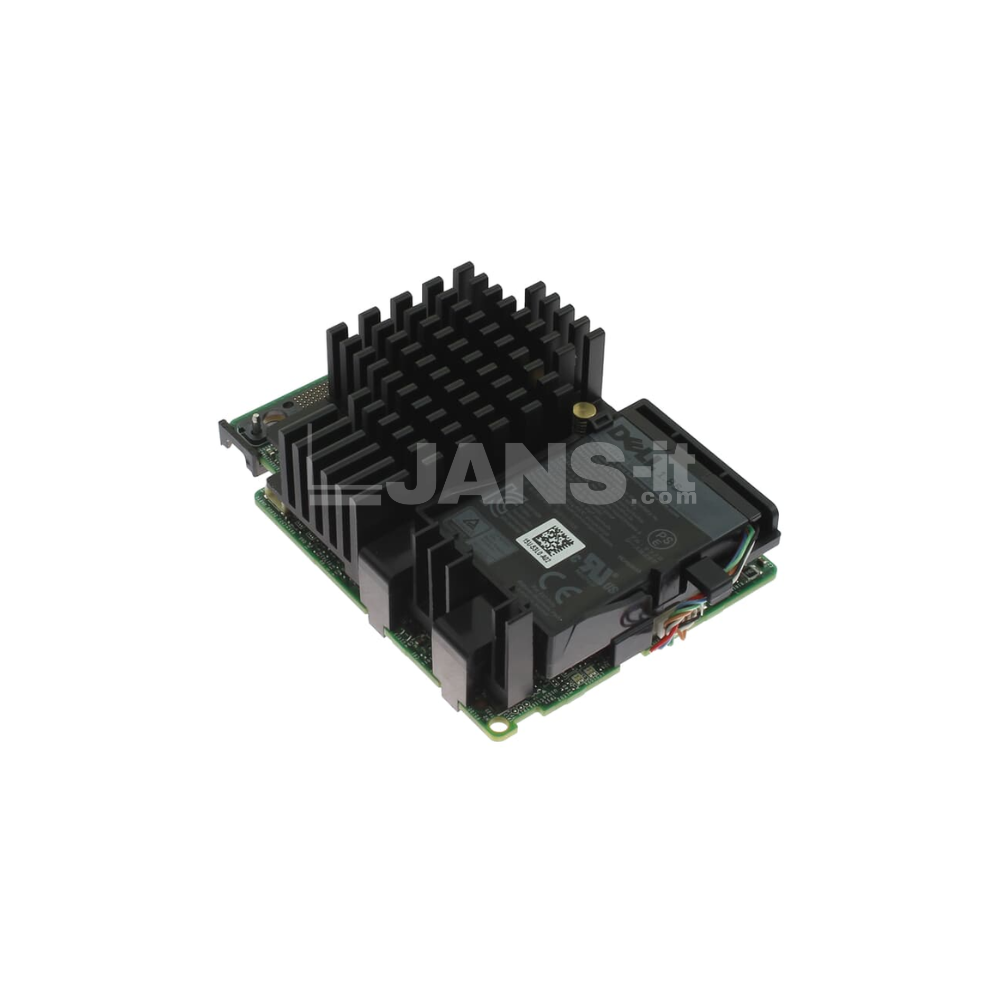

Controladora RAID Dell PERC H740p Mini-Mono (14th Gen)

• Controller Type: RAID Controller
• Form Factor: Mini Mono (designed to fit in a modular slot within compatible Dell servers)
• Interface: PCIe 3.1 x8
• SAS/SATA Support: 12 Gb/s SAS and 6 Gb/s SATA
• Ports: 8 internal SAS/SATA lanes via 2 x4 Mini-SAS HD connectors
• Cache: 8 GB DDR4 2133 MHz NV Cache (Non-Volatile Cache) with battery backup
• Maximum Drives Supported: Up to 32 physical drives
• Data Transfer Rate: Up to 12 Gbps per SAS lane
• Processor: LSI SAS3508 Dual Core ARM A15 Processor ROC
• Non-RAID (Pass-Through) Mode: Yes
• Support for 4KN Drives: Yes
• Controller Connectors: 1x PERC Mini-SAS HD
• RAID Protection: NV-RAM
• Chipset: LSI SAS3508Lista de compatibilidade:
• PowerEdge R640
• PowerEdge R6415
• PowerEdge R6515
• PowerEdge R740
• PowerEdge R740xd
• PowerEdge R7415
• PowerEdge R7515
